Brand:Allen-Bradley
Model:1746-IV16
Module Type:DC Input Module
Input Channels:16
Input Voltage Range:10 – 30 VDC
Input Current Rating:8 mA at 24 VDC
Off-State Input Voltage:3 VDC
Nominal Current:8 mA at 24 VDC
Off-State Current:1 mA
Communication Circuits Isolation:500 VDC
Backplane Isolation:1500 VAC
Temperature Rating:0 – 60 °C
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Shock Resistance:30 G

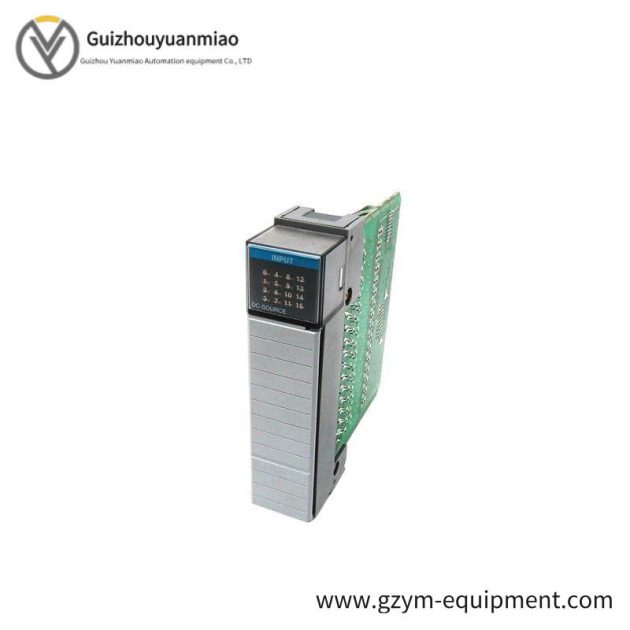

The A-B 1746-IV16 Allen-Bradley DC Input Module is a high-performance digital input device designed for industrial automation applications. It offers 16 channels of digital input, allowing you to monitor and control multiple signals simultaneously. With a wide input voltage range from 10 to 30 VDC, this module ensures compatibility with various sensors and devices. The off-state input voltage of 3 VDC provides reliable performance even in low-voltage environments. The nominal current of 8 mA at 24 VDC ensures efficient operation, while the off-state current of 1 mA minimizes power consumption. The module is equipped with robust isolation features, including communication circuits rated at 500 VDC and backplane isolation up to 1500 VAC, ensuring reliable operation in demanding industrial environments. Compatible with the SLC 500 processor, this module can be easily integrated into existing control systems. Its open-type enclosure and chassis mounting design make installation straightforward, and its temperature rating of 0 – 60 °C and humidity range of 5 – 95% non-condensing relative humidity ensure reliable operation in a variety of environmental conditions. The shock resistance of 30 G further enhances its durability in harsh industrial settings.
