Product Model:1746-OV16
Type:Discrete Output Module
Series:SLC 500
Nominal Input Voltage:24 VDC
Input Voltage Range:10-50 VDC
Backplane Current Consumption:0.270 A
Voltage Range:10-50 VDC
Number of Outputs:16
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Temperature Rating:0-60°C
Environmental Conditions:5-95%

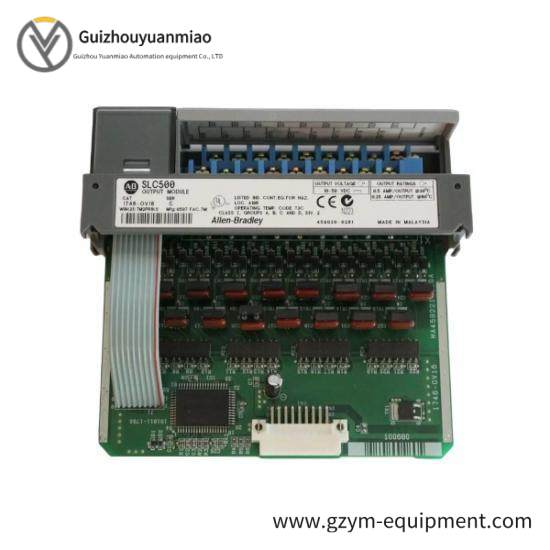

The Allen-Bradley 1746-OV16 discrete output module is an essential component for any SLC 500 controller setup. Designed for reliability and efficiency, this module offers 16 channels of sink outputs, making it ideal for various industrial automation tasks. With a nominal input voltage of 24VDC and a wide input voltage range of 10-50 VDC, it ensures compatibility with a variety of power sources. The backplane current consumption of 0.270 A allows for efficient operation within the control system. The module is equipped with 16 sink outputs, providing ample capacity for diverse applications. Its robust design ensures consistent performance even under demanding conditions, making it a reliable choice for industrial environments.
