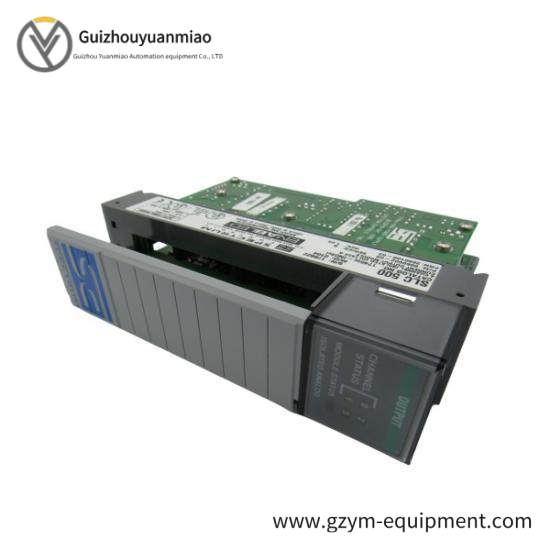

Allen Bradley 1746SC-INO4VI Volt Output SLC 500 Module

Number of Channels:2 (Input), 2 (Output)

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Output Range:-10 To 10 V – 1 LSB

Full Scale:10 VDC

Overvoltage Protection:7.5 VAC RMS

Input Range (Voltage):-10 To 10 VDC – 1 LSB

Current Rating (Backplane):55 MA

Input Voltage (AC/DC):10 – 30 VAC, 10 – 30 VDC (Sink)

Off-State Input Voltage (AC/DC):3 VAC/VDC

Nominal Current (AC/DC):8 MA At 24 VAC/VDC

Off-State Current (AC/DC):1 MA

Continuous Current Per Output:0.25 A At 60 DEG C

Continuous Current Per Module:4 A At 60 DEG C

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

    The Allen Bradley 1746SC-INO4VI Volt Output SLC 500 Module offers unmatched precision in voltage output control, making it an ideal choice for demanding industrial applications. Its robust design withstands the rigors of industrial environments, ensuring reliability and longevity.

    This module features advanced isolation technology, which protects against electrical noise and interference, guaranteeing accurate signal transmission even under extreme conditions. Its versatile connectivity options include EtherNet/IP, DH+, DH-485, and RS-232, facilitating seamless integration with various network infrastructures.

    Equipped with 4 input and 4 output channels, the 1746SC-INO4VI provides flexibility for diverse control scenarios. The common mode voltage range and absolute input voltage ratings ensure compatibility with a wide array of sensors and actuators.

    Designed for optimal efficiency, the module consumes a low backplane current draw, reducing power consumption and system costs. Its compact size and open-type enclosure make it easy to integrate into existing systems without compromising on space.

    With its comprehensive set of features and superior performance, the Allen Bradley 1746SC-INO4VI Volt Output SLC 500 Module is the perfect solution for manufacturers looking to enhance their automation capabilities and achieve higher levels of operational efficiency.
