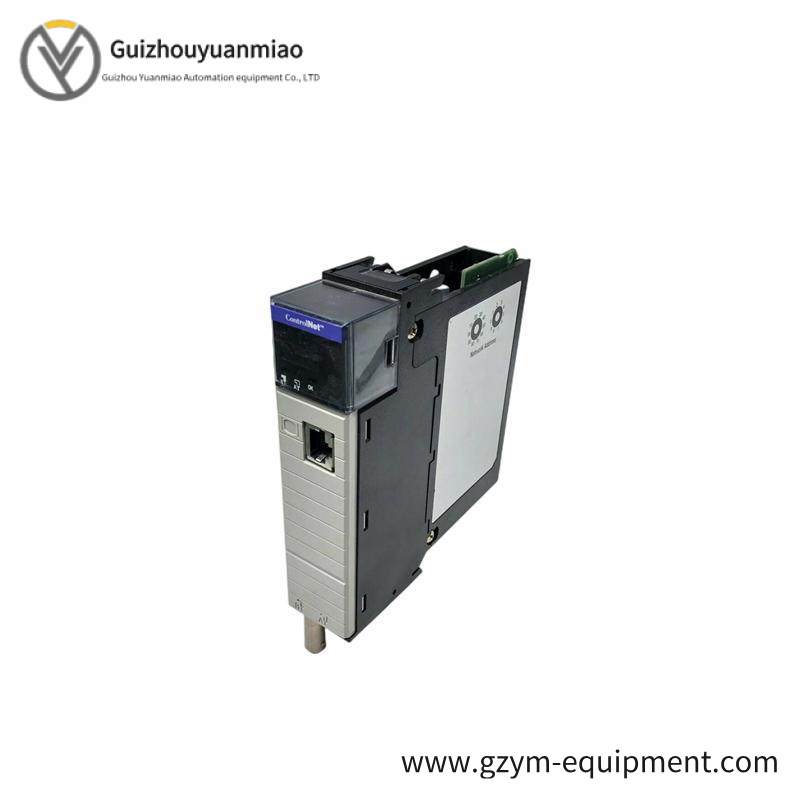

Allen Bradley 1756-CNBR/D CONTROLNET BRIDGE MODULE – Industrial Automation Module for Enhanced Data Exchange

Model Type:Communication Bridge Module

Model Number:1756-CNBR/D

Manufacturer:Allen Bradley

Communication Protocol:ControlNet

Mounting:Chassis

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHZ, Conducted: 10 VRMS with 1 KHZ Sine-Wave 80% AM from 150 KHZ – 80 MHZ

Temperature Range:-40°C to +85°C

Power Consumption:Max 5W

Communication Rate:ControlNet standard rates

    The Allen Bradley AB 1756-CNBR/D ControlNet Bridge Module is designed to enhance the connectivity and performance of industrial automation systems. Its robust design ensures reliable data transfer between ControlNet and DeviceNet networks, optimizing efficiency and reducing downtime.

    With its open type enclosure, the module provides adequate cooling and protection against environmental hazards, making it suitable for harsh industrial environments. It supports high-speed data transmission rates, ensuring seamless communication between different devices within the network.

    Equipped with advanced RF interference suppression capabilities, the AB 1756-CNBR/D is capable of operating effectively in environments with high electromagnetic interference. This feature ensures stable data transfer even under challenging conditions, enhancing overall system reliability.

    Easy to integrate into existing industrial systems, this module offers a straightforward installation process, minimizing setup time and reducing integration costs. It supports both single-ended and differential inputs, providing flexibility in connecting various types of sensors and actuators.

    Engineered for durability and reliability, the Allen Bradley AB 1756-CNBR/D ControlNet Bridge Module is built to withstand demanding industrial conditions. Its compact size and low power consumption make it an ideal choice for space-constrained applications without compromising on performance.
