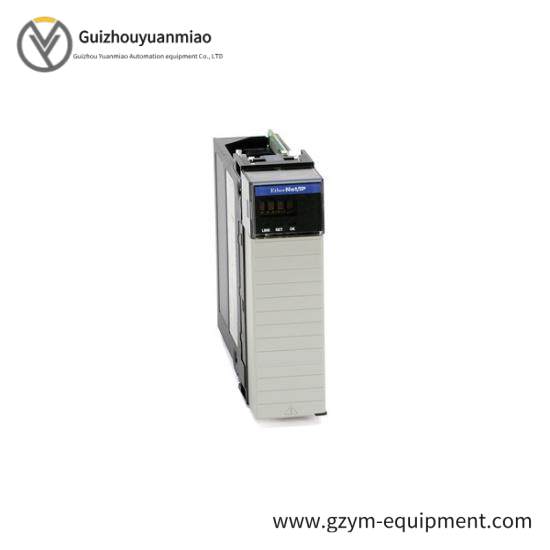

Allen Bradley 1756-ENBT ControlLogix Ethernet/IP Communication Module

Model Type:ControlLogix Communication Module

Manufacturer:Allen Bradley

Model Number:1756-ENBT

Communication Speed:10/100 Mbps

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:30 V (Continuous)

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not applicable

    The AB 1756-ENBT module is engineered for efficiency and reliability, ensuring smooth data transmission across your industrial network. Its compact design allows for easy integration into various control systems without compromising on performance.

    With support for Ethernet/IP protocol, this module ensures compatibility with a wide range of devices, making it a versatile choice for modern factory automation. It supports up to 128 TCP/IP connections and 256 CIP connections, enhancing network scalability and flexibility.

    Equipped with an RJ45 copper connector, the module provides a secure and durable connection option, ideal for industrial environments. It is designed to withstand harsh conditions, maintaining optimal performance in temperatures ranging from -10°C to +55°C.

    Featuring a power supply compatible with DC 24V, the AB 1756-ENBT is suitable for various industrial settings. Its lightweight design (0.2 kg) facilitates installation and movement within the workspace, ensuring it fits seamlessly into existing systems.

    In addition to its technical prowess, the module boasts a user-friendly interface that displays input and communication status along with module health information. This feature aids in quick troubleshooting and maintenance, contributing to overall operational efficiency.
