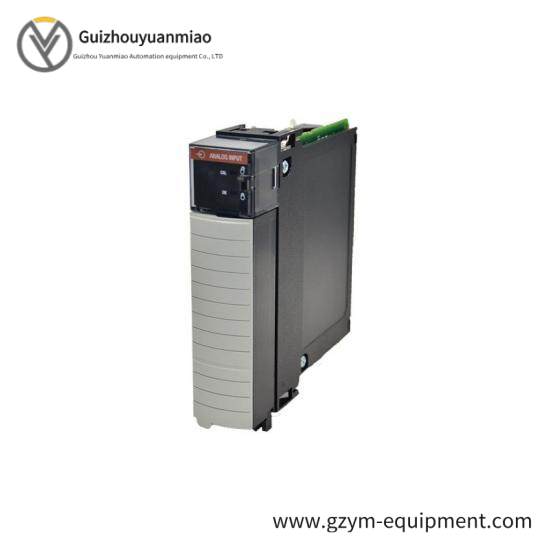

Allen-Bradley 1756-IF16 Analog Input Module

Model Number:1756IF16

Manufacturer:Allen-Bradley

Type:Analog Input Module

Input Channels:16

Input Range:-10 to +10 VDC or -20 to +20 mA

Accuracy:+/- 0.01% of full scale

Sampling Rate:Up to 5 kHz

Operating Temperature:-40°C to +85°C

Power Consumption:Max 100 mA @ 24 VDC

Communication Interface:ControlNet

Enclosure Rating:IP20

Dimensions:85 mm x 141 mm x 127 mm

Weight:Approximately 0.3 kg

    The Allen-Bradley 1756-IF16 Analog Input Module is specifically designed to enhance the efficiency of ControlLogix-based industrial automation systems. Its seamless integration with ControlNet ensures reliable data transmission and improved system performance.

    With its versatile input capacity, this module can accommodate a variety of applications requiring precise analog signal acquisition. Whether it’s single-ended inputs for standard signals or differential inputs for high-speed, high-precision measurements, the 1756-IF16 provides unparalleled flexibility.

    Engineered for durability and reliability, this module features a robust design capable of withstanding harsh industrial environments. Its DC voltage range of 12 to 24 V makes it suitable for a wide range of applications, ensuring compatibility across different systems.

    For easy installation and maintenance, the module utilizes a standard DB9 female connector, simplifying connection to the ControlNet network. Its compact dimensions of 1.8 x 3.2 x 1.2 inches and lightweight structure of 0.3 lbs make it an ideal choice for space-constrained applications without compromising on functionality.

    Experience the benefits of Allen-Bradley’s 1756-IF16 Analog Input Module in your automation projects today, and witness improved system responsiveness, enhanced data accuracy, and streamlined integration processes.
