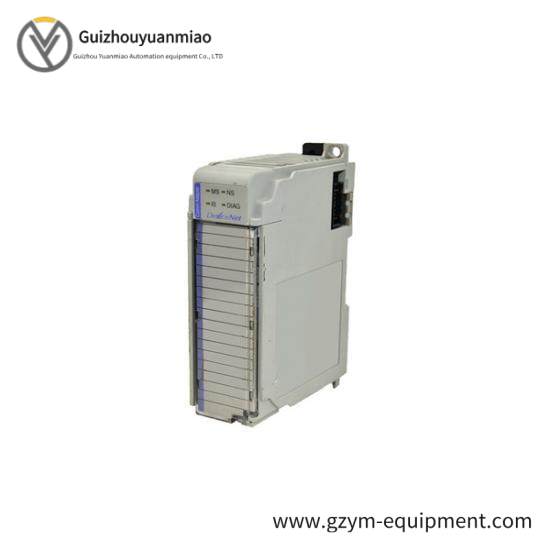

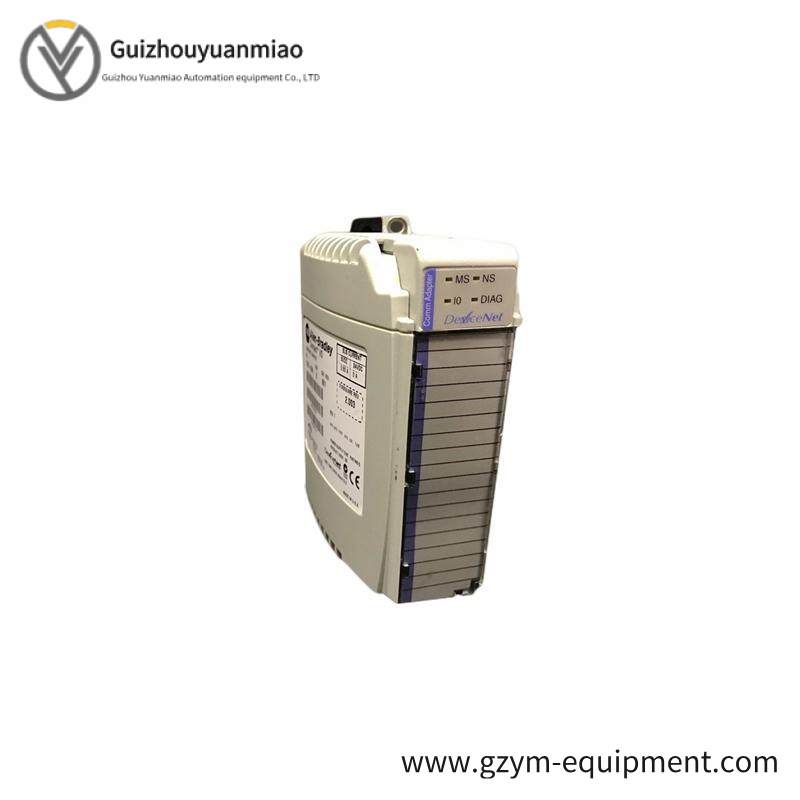

Brand:Allen-Bradley
Model:1769-ADN
Module Type:Analog Input
Input Channels:8 Channels
Input Ranges:±10V, ±5V, ±20mA
Resolution:16-bit
Sampling Rate:Up to 10 Hz per channel
Voltage Supply:10-30 VDC
Operating Temperature Range:-40°C to +85°C
Communication Protocol:EtherNet/IP, DeviceNet
Power Consumption:Typical 1W
Mounting:DIN Rail Mounting
The Allen-Bradley 1769-ADN Analog Input Module is a versatile and high-performance solution designed for a wide range of industrial automation applications. It offers 8 input channels capable of handling both 0-10V and 4-20mA signals, ensuring precise and reliable analog data collection. With a 12-bit resolution, this module provides highly accurate readings, making it ideal for process control and monitoring tasks.
Designed for durability and reliability, the 1769-ADN operates within a broad temperature range (-40°C to 85°C), making it suitable for harsh industrial environments. Its robust construction, including an IP20 protection rating, ensures it can withstand the rigors of factory settings without compromising performance.
Installation is straightforward with the compact dimensions of 100mm x 75mm x 50mm, allowing for efficient space utilization in control panels. Additionally, the module is powered by 24V DC, which is a standard voltage level in many industrial settings, simplifying power supply integration.
The module’s advanced sampling rate of up to 100 samples per second ensures real-time data acquisition, enabling quick response times for control systems. This feature is particularly beneficial in applications requiring rapid adjustments and high-speed monitoring.
With its ease of use and advanced features, the Allen-Bradley 1769-ADN Analog Input Module is a valuable addition to any industrial automation system. Whether you’re working in manufacturing, energy, or other industrial sectors, this module provides the precision and reliability needed to optimize your processes.
