Input Voltage Range:324-528V rms, 3-phase
Nominal Voltage:360/480V
Input Frequency Range:47-63 Hz
Continuous Output Current:6.1 A
Peak Output Current:8.6 A
Efficiency:98%
Internal Shunt Resistor:115 Ohms
Continuous Output Power:3.9 kW
Peak Current (rms):15.3 A
Peak Output Current (0-pk):21.6 A
Capacitance:150 µF
Capacitive Rating:200,000 A (rms) symmetrical
PWM Frequency:8 kHz
Velocity Loop Bandwidth Frequency:500 Hz
Current Loop Bandwidth Frequency:1300 Hz
Power Dissipation:57-126 Watts
Weight:5.6 pounds (2.54 kilograms)

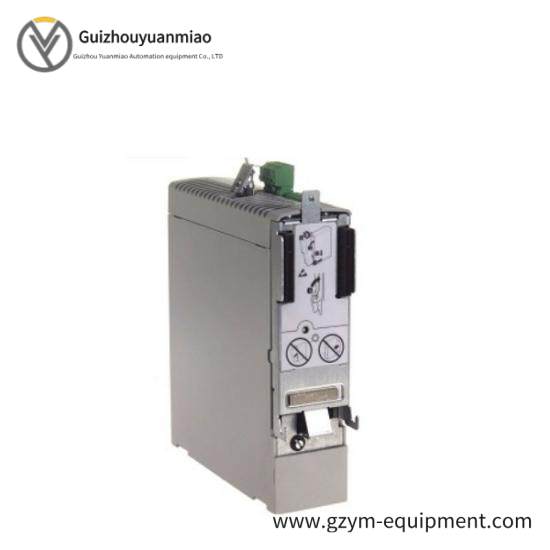

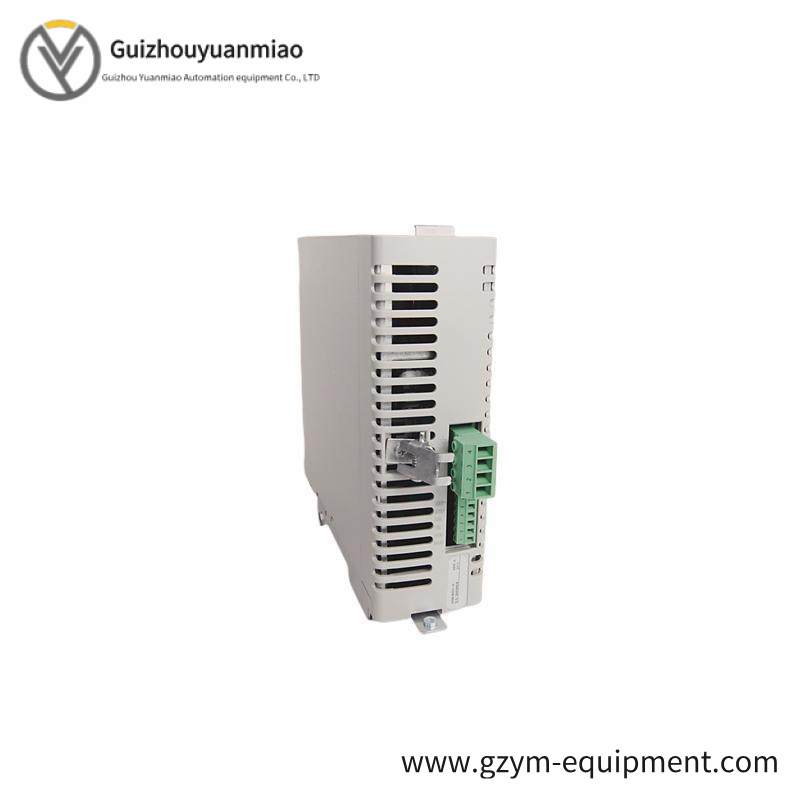

The Allen-Bradley 2094-BM01-S is a versatile and efficient axis module that enhances the performance of industrial automation systems. Designed for demanding applications, this module offers exceptional reliability and durability. It supports up to seven axes per eight-axis power rail, making it ideal for complex machinery and processes. With its integrated Safe-Torque Off (STO) safety functionality, the 2094-BM01-S ensures the highest levels of operational safety, meeting up to Safety Integrity Level (SIL) 3 and Performance Level (PLe). The module’s high efficiency and low power dissipation contribute to reduced energy consumption and lower operational costs. The advanced diagnostic features provide valuable insights into system performance, allowing for proactive maintenance and minimizing downtime. Whether you are upgrading existing systems or building new ones, the Allen-Bradley 2094-BM01-S is a reliable choice that delivers superior performance and safety.
