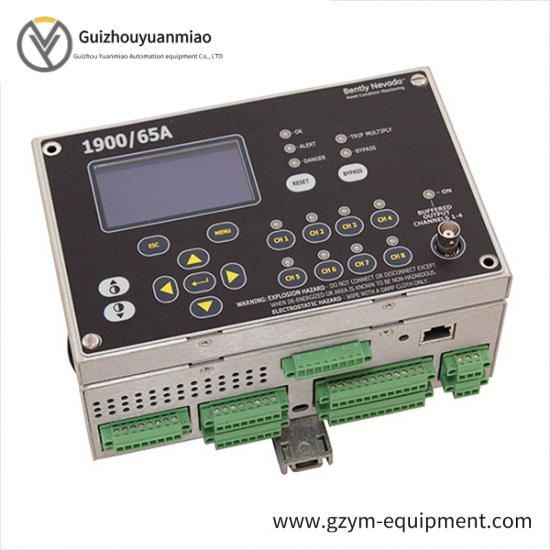

Bently Nevada 1900/65A, 172323-01: General Purpose Equipment Monitor

Operating Temperature:-40°C to +85°C

Input Range:0 to 2000 RPM

Resolution:0.01 g

Vibration Input Range:0 to 50 g peak

Sampling Rate:256 Hz

Alarm Setpoints:Configurable for both vibration and speed

Event Logging Capacity:200 events

Relay Outputs:6 programmable relays

Analog Outputs:4 configurable 4-20 mA channels

Power Supply:12 to 36 VDC

    The Bently Nevada 1900/65A, 172323-01 is engineered with precision to monitor critical parameters of industrial machinery, ensuring continuous operation without unexpected downtime. Its high-resolution 24-bit ADC conversion ensures accurate measurement under varying conditions.

    With its versatile input capabilities, this monitor can integrate seamlessly with various sensors, including vibration, position, speed, and temperature sensors, providing a holistic view of machine health.

    Featuring a compact design and IP65 rating, the Bently Nevada 1900/65A, 172323-01 is built to withstand harsh industrial environments. It comes equipped with six configurable relay outputs, allowing for customized control actions based on predefined alert levels.

    The device supports RS485 and CANopen communication protocols, facilitating easy integration into existing automation systems. Its internal OK checking feature ensures reliable operation by continuously monitoring the system’s status.

    Equipped with a 200-entry event list, the monitor stores critical operational events, aiding in post-maintenance analysis and predictive maintenance planning. The customizable scale factors and full scale ranges further enhance its adaptability to different monitoring requirements.
