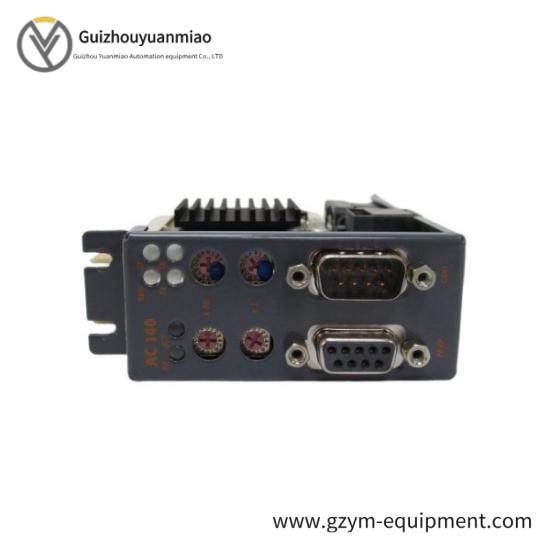

B&R 8AC122.60-3 Resolver Interface, High-Speed Data Acquisition

Resolution:10 kHz

Operating Voltage:DC 24 V

Input Current:Max. 5 mA

Output Type:Digital

Signal Processing Time:Less than 10 μs

Temperature Range:-20°C to +60°C

Communication Interface:RS-485

Power Consumption:0.5 W

Connection:2-wire, shielded twisted pair cable

    Introducing the B&R 8AC122.60-3 Resolver Interface 10 kHz, a cutting-edge industrial control module tailored for precision speed measurement in demanding machinery applications. This compact device ensures unparalleled accuracy and reliability, making it an indispensable part of advanced automation systems.

    Featuring a resolution accuracy of ±0.05% of full scale, the 8AC122.60-3 Resolver Interface delivers unparalleled precision, essential for applications requiring high-speed accuracy. Its measurement range spans from 0 to 6000 RPM, catering to a wide array of industrial machinery needs.

    With compatibility across 12 to 24 V DC input voltages and an operating temperature range of -20°C to +70°C, this module is designed to withstand challenging environmental conditions, ensuring consistent performance under various operational scenarios.

    Equipped with an EtherCAT communication interface, the B&R 8AC122.60-3 Resolver Interface seamlessly integrates into modern automation networks, facilitating data exchange at rates of 100 kbps to 1 Mbps. This enhances system efficiency and allows for real-time monitoring and control.

    In terms of power consumption, the device operates efficiently with a maximum of 5 W, ensuring low energy usage without compromising on performance. The B&R 8AC122.60-3 Resolver Interface is a testament to B&R‘s commitment to innovation, offering a robust solution for precision speed measurement in industrial settings.
