Control Power nominal:20 VA
Control Power maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:4.5 kg
Optional Metering Feature:Included
RTD Inputs:12

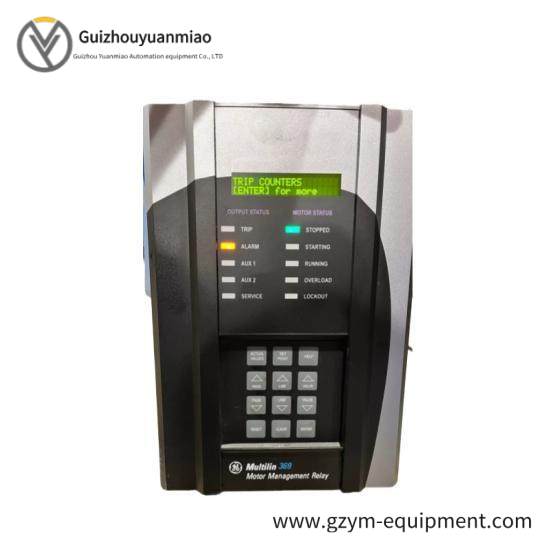

The GE 369-HI-R-M-0-0 is a sophisticated motor management relay designed specifically for industrial applications. By utilizing advanced features like waveform capture, event reports, and data logging, this relay ensures optimal motor performance and reliability. With its built-in optional metering capabilities, it provides real-time insights into system performance, helping to identify and address issues before they lead to costly downtime. Its robust design, with a true RMS phase current input conversion, ensures accurate and consistent measurements under varying load conditions. Additionally, the 369-HI-R-M-0-0 is equipped with twelve RTD inputs, making it suitable for safeguarding and controlling medium-sized motors and associated equipment. This relay is compatible with a wide range of power input ranges, ensuring flexibility in various industrial settings. The compact and durable design, coupled with its ease of installation and maintenance, makes it an ideal choice for industrial operations seeking reliable motor management solutions.
