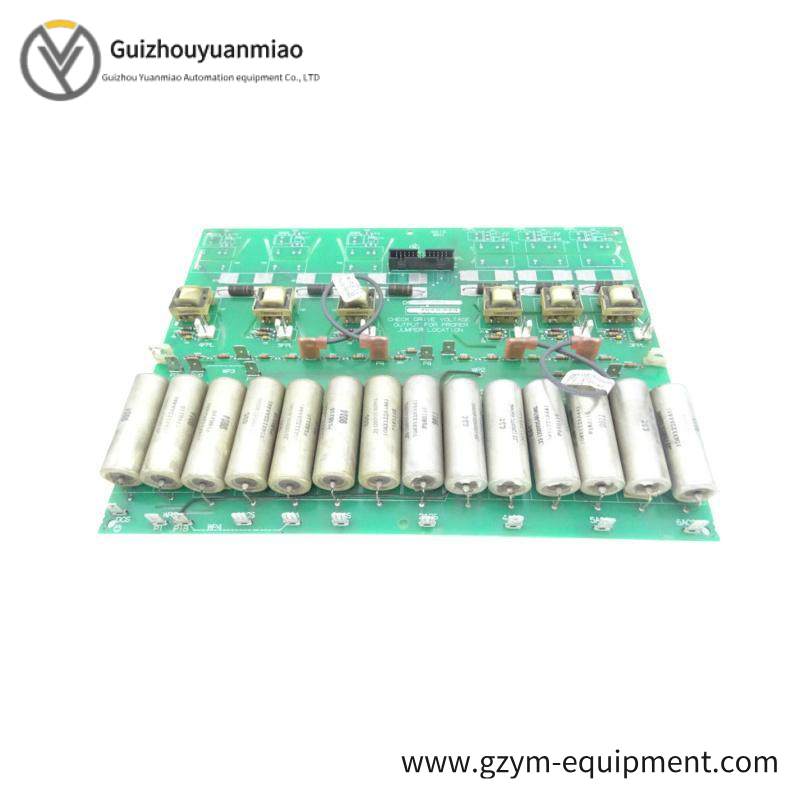

GE DS200PCCAG8ACB – High-Performance DC Power Connect Board for Mark V Series

Product Type:Power Connect Board

Model:DS200PCCAG8ACB

Manufactured By:General Electric

Series:Mark V

Functional Revision:A

Physical Dimensions:148mm x 101mm x 50mm

Weight:0.2kg

Operating Voltage Range:100V to 400V

Input Current Rating:30A

Output Current Rating:30A

Communication Protocol:Serial Communication

Environment Temperature Range:-20°C to +50°C

Humidity Range:5% to 95%

Mounting Type:Panel Mount

Coating Style:Solderable Surface

Revision Information:A-rated Primary, C-rated Secondary, B-rated Artwork Configuration

    This high-performance GE DS200PCCAG8ACB Power Connect Board is specifically designed for integration with the Mark V series of turbine control systems, ensuring seamless operation and reliability in industrial environments.

    As a core component in the system architecture, it facilitates efficient communication between the drive system and the SCR power bridge, enhancing overall system performance and control accuracy.

    Crafted with precision, the DS200PCCAG8ACB features a normal PCB coating style, complemented by a carefully rated revision system (A, C, B) that ensures optimal compatibility and longevity, making it a reliable choice for demanding applications.

    With dimensions of 11 x 6 x 6.7 cm and a lightweight design of 0.14 kg, this board is engineered for ease of installation and maintenance, minimizing downtime and maximizing operational efficiency.

    Ideal for sectors requiring precise and robust control solutions, the DS200PCCAG8ACB stands as a testament to GE‘s commitment to innovation and reliability, providing users with unparalleled performance and dependability.
