Manufacturer:GE Industrial Systems
Series:Ex2100 Excitation Control
Part Number:IS200DSPXH1DBC
Functional Description:Digital Signal Processor Control Board
Functional Acronym:DSPX
PCB Coating:Conformal Coating
Functional Revision:1D
Artwork Revision:C
Instruction Manual:GEI-100488
Clock Speed:60 MHz
I/O Connectors:P1 backplane, P5 DSP emulator, P6 engineering monitor
Onboard Memory:FLASH, RAM, NVRAM
Interfaces:Two (Master or Slave) 5 Mb/s ISBus interfaces

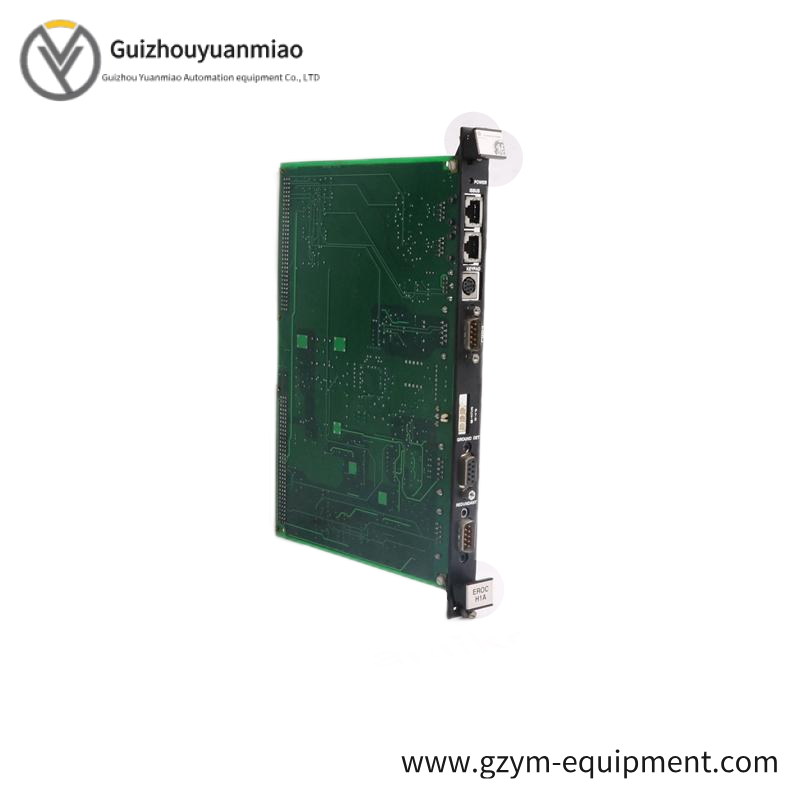

The IS200DSPXH1DBC is a cutting-edge digital signal processor control board specifically designed for industrial automation applications.
It is a vital component of the GE Industrial Systems EX2100 series of excitation control components.
With its singular central control module running on Windows software, the IS200DSPXH1DBC offers exceptional performance and reliability.
Equipped with a 60 MHz digital signal processor and an additional application-specific integrated circuit (ASIC), this board ensures efficient and accurate signal processing.
Its conformal coating protects against environmental hazards, ensuring long-lasting operation in harsh industrial environments.
The IS200DSPXH1DBC is easy to integrate into existing systems due to its user-friendly design and comprehensive documentation provided by the manufacturer.
