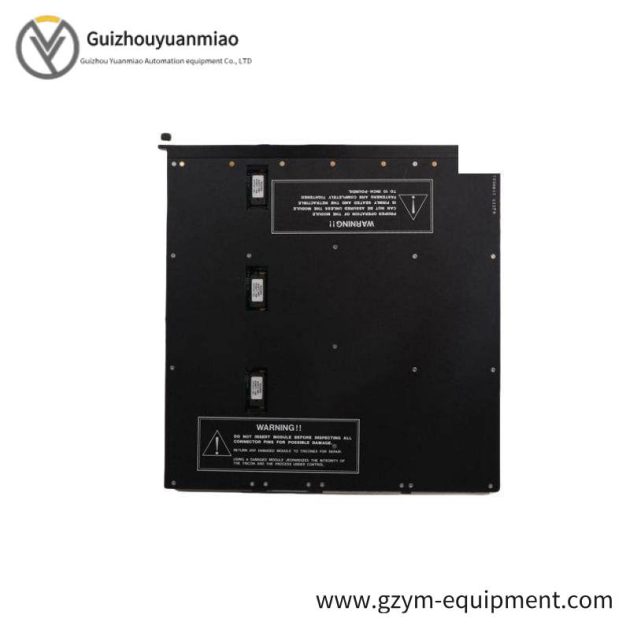

Invensys Triconex 3511 Pulse Input (PI) Module – Reliable Industrial Automation Solutions

Manufacturer:Invensys Triconex

Model Number:3511

Type:TMR, PI

Input Signals:8, non-commoned

Resolution:16 bits

Accuracy:1,000 Hz to 20,000 Hz, ± 0.01%

Input Characteristics:(AC coupled, balanced differential)

Update Rate:25 ms, typical

Impedance (Load):> 8 KW, 20 KW typical

Common Mode Range:-100 VDC to +100 VDC peak-to-peak

Normal Mode Range:1.5 V to 200 V peak-to-peak

Overrange Protection:±150 VDC, continuous

Hysteresis:150 millivolts, typical

Wave Shape:Sine, square, pulse, etc.

    Engineered for robust industrial environments, the Triconex 3511 Pulse Input Module is a cornerstone in ensuring precision and reliability in process control applications.

    Featuring advanced True Redundancy technology, it ensures uninterrupted operation by continuously monitoring and managing multiple redundant processors, providing superior safety and availability.

    With a resolution of 16 bits and an accuracy ranging from 1,000 Hz to 20,000 Hz with ± 0.01% precision, this module delivers unparalleled signal integrity and responsiveness.

    Equipped with a wide common mode range and a high normal mode range, it can handle a broad spectrum of electrical inputs, making it versatile for various industrial settings.

    The module supports a variety of wave shapes, accommodating diverse input signals and enhancing compatibility with different industrial protocols and standards.

    Designed for ease of integration, the Triconex 3511 Pulse Input Module seamlessly connects to existing systems, minimizing downtime and maximizing operational efficiency.
