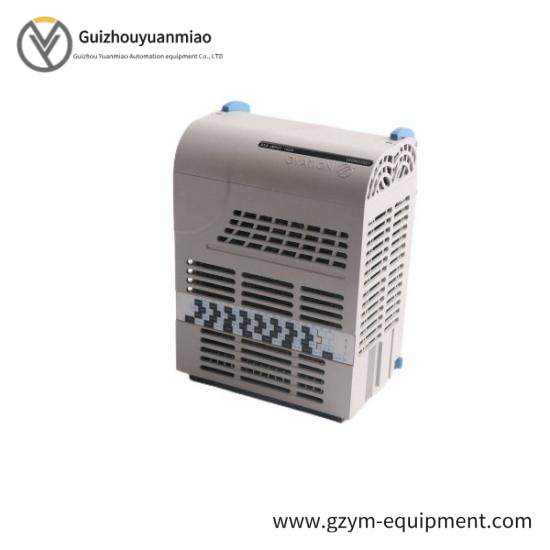

Ovation 5X00622G01 – 16 Channel RTD Input Module, Precision Temperature Measurement

Input Channels:16

Resistance Temperature Detection (RTD):Supports Pt100, Pt500, Pt1000, Cu50

Operating Voltage:24V DC

Power Consumption:≤ 2W

Signal Processing:12-bit ADC

Temperature Measurement Range:-200°C to +850°C

Accuracy:+/- 0.1% + 2LSB

Dimensions:105mm x 94mm x 35mm

Weight:150g

Environmental Rating:IP65

Communication Interface:RS-485 Modbus RTU

    The Ovation 5X00622G01 16 Channel RTD Input Module is engineered for high-precision temperature measurement in demanding industrial conditions. Its versatile compatibility with S, R, and Cu series RTDs ensures accuracy and reliability across a wide range of temperatures and materials.

    Featuring a robust 200 samples per second sampling rate, this module delivers real-time data for immediate process adjustments, enhancing operational efficiency and reducing downtime.

    Precision-engineered to meet the highest standards, the module boasts an accuracy of ±0.02% of reading at 25°C, making it an ideal choice for applications requiring utmost accuracy.

    Designed with user convenience in mind, the module includes terminal block connectors for easy installation and maintenance, along with overloading and short-circuit protections for enhanced safety.

    Operable in a broad temperature range from -40°C to +85°C, the Ovation 5X00622G01 is suitable for a multitude of industrial environments, from cold storage facilities to extreme heat processing areas.
