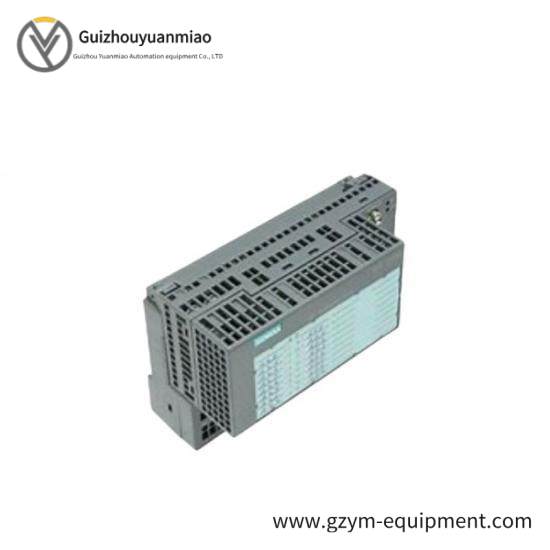

SIEMENS 6ES7132-1BH00-0XB0 | SIMATIC ET200L Digital Output Block

Model Type:Digital Output Block

Manufacturer:SIEMENS

Model Number:6ES7132-1BH00-0XB0

Module Family:ET200L

Output Configuration:8x 24V DC, 0.5A

Operating Voltage:230V AC

Operating Current:≤2A

Operating Frequency:0.1Hz to 600Hz

Connection Type:Profinet

Diagnosis Features:Short-circuit to L+, Ground Wire Break, Supply Voltage Monitoring

Dimensions:150mm x 160mm x 55mm

Weight:0.16kg

Lifecycle:Active

Net Weight (lb):0.35lb

Product Class:Automation Control

    The Siemens 6ES7132-1BH00-0XB0 is a state-of-the-art digital output block designed for integration into the SIMATIC ET200L system, which is renowned for its robustness and reliability in harsh industrial settings. This module offers 16 independent digital output channels, each capable of handling a wide range of signals and loads, making it suitable for diverse applications across manufacturing, process control, and automation industries.

    Equipped with a fast response time of less than 1 millisecond, this digital output block ensures instantaneous switching and precise control over actuators, motors, and other mechanical components, enhancing operational efficiency and reducing downtime.

    With an operating temperature range from -25°C to +60°C, the module is engineered to withstand extreme environmental conditions, ensuring continuous performance in demanding industrial environments. Its IP20 enclosure provides basic protection against dust and splashes, safeguarding the internal electronics from damage.

    The inclusion of a Profinet communication interface allows seamless integration with other Siemens and third-party devices, facilitating a modular and scalable control system architecture. This feature supports real-time data exchange and control commands, optimizing system performance and enabling remote monitoring and diagnostics.

    Efficient power consumption of up to 1 watt per channel ensures energy savings without compromising on performance. Additionally, the module’s compact design allows for easy installation and integration within existing control panels or cabinets, minimizing the footprint and enhancing system design flexibility.
