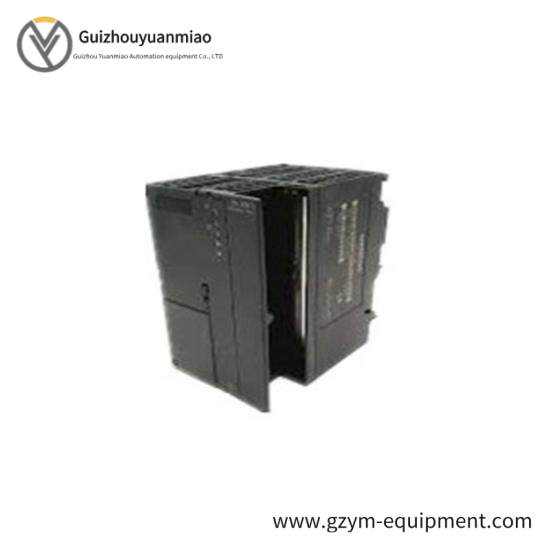

SIEMENS 6ES7338-7UH01-0AC0 Ultrasonic Position Decoder Module

Measuring Range:0 to 1000 mm

Accuracy:±0.01% of reading ± 1 µm

Communication Interface:Start/Stop Interface, compatible with Balluff or MTS

Operating Voltage:DC 12V to 30V

Current Consumption:Max. 10mA

Environmental Conditions:Temperature: -20°C to +60°C, Humidity: 5% to 95% non-condensing

    The SIEMENS 6ES7338-7UH01-0AC0 Ultrasonic Position Decoder Module is designed for applications requiring precise position measurement with ultrasonic technology. It seamlessly integrates into existing systems, ensuring high accuracy and reliability in a wide range of industrial settings.

    With a measurement range up to 2 meters, this module provides exceptional resolution at 0.1 mm, enabling detailed positioning capabilities. Its ability to sample at a rate of 10 times per second ensures real-time, accurate data transmission, crucial for applications that demand precision and responsiveness.

    Capable of operating with a power supply voltage between 10 and 30 volts DC, this module is versatile and can be adapted to various system requirements. Its low current consumption of up to 25 mA helps maintain efficiency without compromising performance.

    The Start/Stop interface allows for easy integration with external systems, providing flexibility in how the module interacts with other components in the system. This feature is particularly beneficial for systems that require direct control over the measurement process.

    The module is designed to withstand challenging environmental conditions. It operates efficiently within a temperature range of -20°C to +55°C during operation, and it can be stored in temperatures ranging from -40°C to +70°C without performance degradation, ensuring its reliability across diverse operational environments.
