CPU Type:Compact
Model Number:6ES7314-6CH04-0AB0
Processor Speed:Up to 600kHz
Digital Inputs (DI):24
Digital Outputs (DO):16
Analog Inputs (AI):4
Analog Outputs (AO):2
PT100 Compatibility:Yes
High-Speed Counters:4
Integrated DP Interface:Yes
Power Supply:24V DC
Work Memory:192KB
Dimensions (WxDxH):13.20 x 15.20 x 13.10 cm
Weight:0.733 kg
Connectivity:MPI/DP, Micro Memory Card Required
Operating Voltage:208-240V AC
Amps (CT):4.2A max
Nominal Frequency:600 Hz

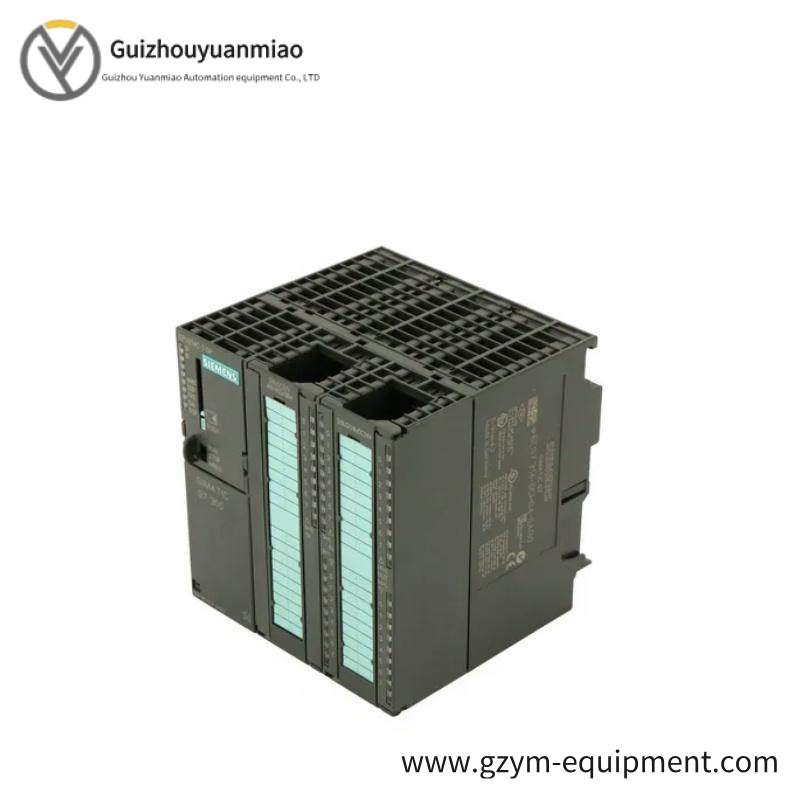

The SIEMENS S7-300 Compact CPU 314C-2 DP is engineered for high performance and reliability in industrial applications. It seamlessly integrates MPI (Multiprotocol Interface) for easy communication with a wide range of devices.
With its robust 192KB working memory, this CPU supports complex programming needs, enabling the execution of sophisticated control algorithms. The integration of 24 digital inputs and 16 digital outputs provides ample flexibility for signal handling.
Equipped with 4 analog inputs and 2 analog outputs, it can accurately manage temperature sensors and other continuous process variables, ensuring precise control over critical processes. The inclusion of a single Pt100 sensor connection allows for temperature measurement in various applications.
The addition of four high-speed counters (operating at 60kHz) is ideal for timing and position control tasks, making it suitable for applications requiring fast and accurate data acquisition and processing.
Featuring an integrated 24V DC power supply, this CPU ensures stable operation without the need for external power sources. Its compact size and lightweight design facilitate easy installation in confined spaces, enhancing its versatility in diverse industrial settings.
