Operating Voltage Range:12VDC – 30VDC
Input Signal Range:4mA to 20mA
Channels:16
Isolation Barrier:Intrinsically Safe
Terminal Resistance:250Ω + (voltage drop (3V max) / current value)
Voltage Developed Between Connectors:Developed between module’s 2-wire transmitter
Minimum Operating Voltage Requirement:Consider voltage drop in external wiring when calculating

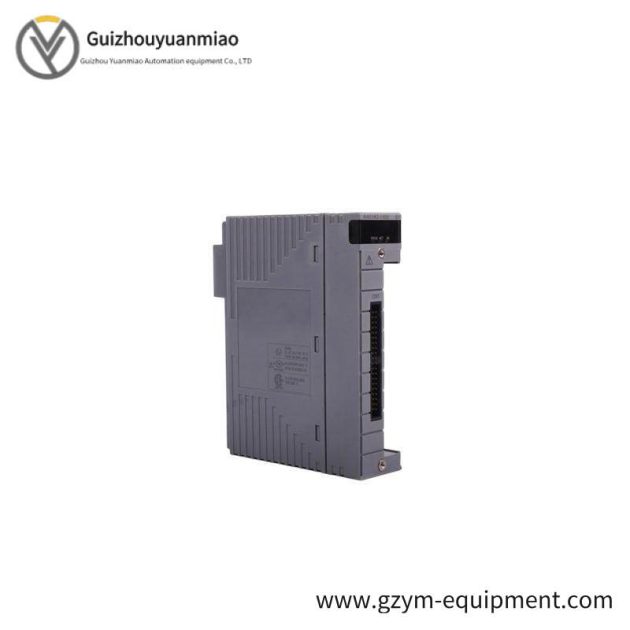

This Yokogawa AAI143-H50 S1 ANALOG INPUT MODULE is designed for seamless integration into industrial control systems, providing robust performance under various environmental conditions.
Equipped with an advanced isolation barrier, it ensures safety in inherently hazardous areas, making it ideal for applications requiring compliance with strict safety regulations.
Featuring a wide operating range of 4 to 20 mA, this module supports a diverse array of sensors and devices, enhancing its versatility across different industries.
With 16 channels, it offers scalability for complex systems, allowing for efficient data collection and processing without compromise on accuracy or reliability.
The input resistance is carefully engineered to balance sensitivity with protection, ensuring minimal signal degradation even in high current scenarios.
For optimal performance, consider the impact of voltage drops in external wiring when setting up the module with 2-wire transmitters, ensuring compliance with minimum operating voltage requirements.
